EmissionAbsorptionModel Tutorial

Trey V. Wenger (c) November 2024

Here we demonstrate the EmissionAbsorptionModel model. EmissionAbsorptionModel is a more physically motivated model than AbsorptionModel, and it also predicts the brightness temperature spectra for the 1612, 1665, 1667, and 1720 MHz hyperfine transitions of OH. This notebook is otherwise identical to the AbsorptionModel notebook.

# General imports
import numpy as np
import matplotlib.pyplot as plt
import arviz as az
import pandas as pd

import pytensor
print("pytensor version:", pytensor.__version__)

import pymc
print("pymc version:", pymc.__version__)

import bayes_spec
print("bayes_spec version:", bayes_spec.__version__)

import amoeba2
print("amoeba2 version:", amoeba2.__version__)

# Notebook configuration
pd.options.display.max_rows = None

pytensor version: 2.26.3
pymc version: 5.18.2
bayes_spec version: 1.7.2
amoeba2 version: 1.0.1+7.gad490bf.dirty

Simulating Data

To test the model, we must simulate some data. We can do this with EmissionAbsorptionModel, but we must pack a “dummy” data structure first. The model expects the absorption (\(1-\exp(-\tau)\)) observations to be named "absorption_1612", "absorption_1665", "absorption_1667", and "absorption_1720" and the brightnes temperature observations to be named "emission_1612", "emission_1665", "emission_1667", and "emission_1720".

from bayes_spec import SpecData

# spectral axes definition
velo_axis = {
    "1612": np.linspace(-20.0, 20.0, 400), # km s-1
    "1665": np.linspace(-18.0, 18.0, 450),
    "1667": np.linspace(-18.0, 18.0, 450),
    "1720": np.linspace(-15.0, 15.0, 500),
}

# data noise can either be a scalar (assumed constant noise across the spectrum)
# or an array of the same length as the data
rms_absorption = {
    "1612": 0.001,
    "1665": 0.001,
    "1667": 0.001,
    "1720": 0.001,
}
rms_emission = {
    "1612": 0.1,
    "1665": 0.1,
    "1667": 0.1,
    "1720": 0.1,
}

# brightness data. In this case, we just throw in some random data for now
# since we are only doing this in order to simulate some actual data.
absorption = {label: rms_absorption[label] * np.random.randn(len(velo_axis[label])) for label in velo_axis.keys()}
emission = {label: rms_emission[label] * np.random.randn(len(velo_axis[label])) for label in velo_axis.keys()}

# TauModel expects four observations
dummy_data = {
    f"absorption_{label}": SpecData(
        velo_axis[label],
        absorption[label],
        rms_absorption[label],
        xlabel=r"$V_{\rm LSR}$ (km s$^{-1}$)",
        ylabel=r"$1 - e^{-\tau_{"+f"{label}"+r"}}$"
    )
    for label in velo_axis.keys()
}
for label in velo_axis.keys():
    dummy_data[f"emission_{label}"] = SpecData(
        velo_axis[label],
        emission[label],
        rms_emission[label],
        xlabel=r"$V_{\rm LSR}$ (km s$^{-1}$)",
        ylabel=r"$T_{B,\,"+f"{label}"+r"}$ (K)"
    )

# Plot dummy data
fig, axes = plt.subplots(8, sharex=True, layout="constrained", figsize=(12, 12))
for ax, dummy_datum in zip(axes, dummy_data.values()):
    ax.plot(dummy_datum.spectral, dummy_datum.brightness, "k-")
    ax.set_ylabel(dummy_datum.ylabel)
_ = axes[-1].set_xlabel(dummy_datum.xlabel)

Now that we have a dummy data format, we can generate a simulated observation by evaluating the likelihood.

from amoeba2 import EmissionAbsorptionModel

# Initialize and define the model
n_clouds = 3
baseline_degree = 0
model = EmissionAbsorptionModel(
    dummy_data,
    n_clouds=n_clouds,
    baseline_degree=baseline_degree,
    seed=1234,
    verbose=True
)
model.add_priors(
    prior_log10_N0 = [13.0, 1.0], # mean and width of log10(N0) prior (cm-2)
    prior_log_boltz_factor = [-0.1, 1.0], # mean and width of log(Boltzmann factor) prior
    prior_log10_depth = [0.0, 0.25], # mean and width of log10(depth) prior (pc)
    prior_log10_Tkin = [2.0, 1.0], # mean and width of log10(Tkin) prior (K)
    prior_velocity = [0.0, 5.0], # mean and width of velocity prior (km/s)
    prior_log10_nth_fwhm_1pc = [0.2, 0.1], # mean and width of non-thermal FWHM prior (km/s)
    prior_depth_nth_fwhm_power = [0.4, 0.1], # mean and width of non-thermal FWHM exponent prior
    ordered = False, # do not assume optically-thin
    mainline_pos_tau = True, # force main line optical depths to be positive
)
model.add_likelihood()

# Evaluate likelihood for given model parameters
sim_params = {
    "log_boltz_factor_1612": np.array([-0.05, 0.1, 0.05]),
    "log_boltz_factor_1665": np.array([-0.1, -0.05, -0.02]),
    "log_boltz_factor_1667": np.array([-0.05, -0.02, -0.1]),
    "log10_N0": np.array([13.0, 13.5, 12.5]),
    "log10_depth": np.array([0.0, 0.25, -0.25]),
    "log10_Tkin": np.array([1.25, 1.75, 1.0]),
    "velocity": np.array([-3.0, 1.0, 3.0]),
    "log10_nth_fwhm_1pc": 0.2,
    "depth_nth_fwhm_power": 0.3,
    "baseline_absorption_1612_norm": [0.0],
    "baseline_absorption_1665_norm": [0.0],
    "baseline_absorption_1667_norm": [0.0],
    "baseline_absorption_1720_norm": [0.0],
    "baseline_emission_1612_norm": [0.0],
    "baseline_emission_1665_norm": [0.0],
    "baseline_emission_1667_norm": [0.0],
    "baseline_emission_1720_norm": [0.0],
}

data = {}
for i, label in enumerate(velo_axis.keys()):
    # Simulate optical depth
    absorption = model.model[f"absorption_{label}"].eval(sim_params, on_unused_input="ignore")
    data[f"absorption_{label}"] = SpecData(
        velo_axis[label],
        absorption,
        rms_absorption[label],
        xlabel=r"$V_{\rm LSR}$ (km s$^{-1}$)",
        ylabel=r"$1 - e^{-\tau_{"+f"{label}"+r"}}$"
    )

    # Simulate brightness temperature
    emission = model.model[f"emission_{label}"].eval(sim_params, on_unused_input="ignore")
    data[f"emission_{label}"] = SpecData(
        velo_axis[label],
        emission,
        rms_emission[label],
        xlabel=r"$V_{\rm LSR}$ (km s$^{-1}$)",
        ylabel=r"$T_{B,\,"+f"{label}"+r"}$"
    )

# Plot data
fig, axes = plt.subplots(8, sharex=True, layout="constrained", figsize=(12, 12))
for ax, datum in zip(axes, data.values()):
    ax.plot(datum.spectral, datum.brightness, "k-")
    ax.set_ylabel(datum.ylabel)
_ = axes[-1].set_xlabel(datum.xlabel)

Model Definition

# Initialize and define the model
model = EmissionAbsorptionModel(
    data,
    n_clouds=n_clouds,
    baseline_degree=baseline_degree,
    seed=1234,
    verbose=True
)
model.add_priors(
    prior_log10_N0 = [13.0, 1.0], # mean and width of log10(N0) prior (cm-2)
    prior_log_boltz_factor = [-0.1, 1.0], # mean and width of log(Boltzmann factor) prior
    prior_log10_depth = [0.0, 0.25], # mean and width of log10(depth) prior (pc)
    prior_log10_Tkin = [2.0, 1.0], # mean and width of log10(Tkin) prior (K)
    prior_velocity = [0.0, 5.0], # mean and width of velocity prior (km/s)
    prior_log10_nth_fwhm_1pc = [0.2, 0.1], # mean and width of non-thermal FWHM prior (km/s)
    prior_depth_nth_fwhm_power = [0.4, 0.1], # mean and width of non-thermal FWHM exponent prior
    ordered = False, # do not assume optically-thin
    mainline_pos_tau = True, # force main line optical depths to be positive
)
model.add_likelihood()

# Plot model graph
import pymc as pm
gviz = pm.model_to_graphviz(model.model)
gviz.graph_attr["rankdir"] = "TB"
gviz.graph_attr["splines"] = "ortho"
# gviz.graph_attr["newrank"] = "true"
gviz.graph_attr["rank"] = "same"
gviz.graph_attr["ranksep"] = "1.0"
gviz.graph_attr["nodesep"] = "0.5"
gviz.render('emission_absorption_model', format='png')
gviz

# model string representation
print(model.model.str_repr())

baseline_absorption_1612_norm ~ Normal(0, 1)
  baseline_emission_1612_norm ~ Normal(0, 1)
baseline_absorption_1665_norm ~ Normal(0, 1)
  baseline_emission_1665_norm ~ Normal(0, 1)
baseline_absorption_1667_norm ~ Normal(0, 1)
  baseline_emission_1667_norm ~ Normal(0, 1)
baseline_absorption_1720_norm ~ Normal(0, 1)
  baseline_emission_1720_norm ~ Normal(0, 1)
                log10_N0_norm ~ Normal(0, 1)
   log_boltz_factor_1612_norm ~ Normal(0, 1)
   log_boltz_factor_1665_norm ~ HalfNormal(0, 1)
   log_boltz_factor_1667_norm ~ HalfNormal(0, 1)
             log10_depth_norm ~ Normal(0, 1)
              log10_Tkin_norm ~ Normal(0, 1)
                velocity_norm ~ Normal(0, 1)
      log10_nth_fwhm_1pc_norm ~ Normal(0, 1)
    depth_nth_fwhm_power_norm ~ Normal(0, 1)
                     log10_N0 ~ Deterministic(f(log10_N0_norm))
        log_boltz_factor_1612 ~ Deterministic(f(log_boltz_factor_1612_norm))
        log_boltz_factor_1665 ~ Deterministic(f(log_boltz_factor_1665_norm))
        log_boltz_factor_1667 ~ Deterministic(f(log_boltz_factor_1667_norm))
        log_boltz_factor_1720 ~ Deterministic(f(log_boltz_factor_1612_norm, log_boltz_factor_1667_norm, log_boltz_factor_1665_norm))
                     log10_N2 ~ Deterministic(f(log_boltz_factor_1665_norm, log10_N0_norm))
                     log10_N1 ~ Deterministic(f(log_boltz_factor_1612_norm, log_boltz_factor_1665_norm, log10_N0_norm))
                     log10_N3 ~ Deterministic(f(log_boltz_factor_1667_norm, log_boltz_factor_1612_norm, log_boltz_factor_1665_norm, log10_N0_norm))
                  log10_depth ~ Deterministic(f(log10_depth_norm))
                   log10_Tkin ~ Deterministic(f(log10_Tkin_norm))
                     velocity ~ Deterministic(f(velocity_norm))
           log10_nth_fwhm_1pc ~ Deterministic(f(log10_nth_fwhm_1pc_norm))
         depth_nth_fwhm_power ~ Deterministic(f(depth_nth_fwhm_power_norm))
                 fwhm_thermal ~ Deterministic(f(log10_Tkin_norm))
              fwhm_nonthermal ~ Deterministic(f(depth_nth_fwhm_power_norm, log10_depth_norm, log10_nth_fwhm_1pc_norm))
                         fwhm ~ Deterministic(f(depth_nth_fwhm_power_norm, log10_depth_norm, log10_nth_fwhm_1pc_norm, log10_Tkin_norm))
                     Tex_1612 ~ Deterministic(f(log_boltz_factor_1612_norm))
                     Tex_1665 ~ Deterministic(f(log_boltz_factor_1665_norm))
                     Tex_1667 ~ Deterministic(f(log_boltz_factor_1667_norm))
                     Tex_1720 ~ Deterministic(f(log_boltz_factor_1612_norm, log_boltz_factor_1667_norm, log_boltz_factor_1665_norm))
              absorption_1612 ~ Normal(f(baseline_absorption_1612_norm, log_boltz_factor_1612_norm, log_boltz_factor_1665_norm, log10_N0_norm, velocity_norm, depth_nth_fwhm_power_norm, log10_depth_norm, log10_nth_fwhm_1pc_norm, log10_Tkin_norm), <constant>)
                emission_1612 ~ Normal(f(baseline_emission_1612_norm, log_boltz_factor_1612_norm, log_boltz_factor_1665_norm, log10_N0_norm, velocity_norm, depth_nth_fwhm_power_norm, log10_depth_norm, log10_nth_fwhm_1pc_norm, log10_Tkin_norm), <constant>)
              absorption_1665 ~ Normal(f(baseline_absorption_1665_norm, log_boltz_factor_1665_norm, log10_N0_norm, velocity_norm, depth_nth_fwhm_power_norm, log10_depth_norm, log10_nth_fwhm_1pc_norm, log10_Tkin_norm), <constant>)
                emission_1665 ~ Normal(f(baseline_emission_1665_norm, log_boltz_factor_1665_norm, log10_N0_norm, velocity_norm, depth_nth_fwhm_power_norm, log10_depth_norm, log10_nth_fwhm_1pc_norm, log10_Tkin_norm), <constant>)
              absorption_1667 ~ Normal(f(baseline_absorption_1667_norm, log_boltz_factor_1667_norm, log_boltz_factor_1612_norm, log_boltz_factor_1665_norm, log10_N0_norm, velocity_norm, depth_nth_fwhm_power_norm, log10_depth_norm, log10_nth_fwhm_1pc_norm, log10_Tkin_norm), <constant>)
                emission_1667 ~ Normal(f(baseline_emission_1667_norm, log_boltz_factor_1667_norm, log_boltz_factor_1612_norm, log_boltz_factor_1665_norm, log10_N0_norm, velocity_norm, depth_nth_fwhm_power_norm, log10_depth_norm, log10_nth_fwhm_1pc_norm, log10_Tkin_norm), <constant>)
              absorption_1720 ~ Normal(f(baseline_absorption_1720_norm, log10_N0_norm, log_boltz_factor_1612_norm, log_boltz_factor_1667_norm, log_boltz_factor_1665_norm, velocity_norm, depth_nth_fwhm_power_norm, log10_depth_norm, log10_nth_fwhm_1pc_norm, log10_Tkin_norm), <constant>)
                emission_1720 ~ Normal(f(baseline_emission_1720_norm, log10_N0_norm, log_boltz_factor_1612_norm, log_boltz_factor_1667_norm, log_boltz_factor_1665_norm, velocity_norm, depth_nth_fwhm_power_norm, log10_depth_norm, log10_nth_fwhm_1pc_norm, log10_Tkin_norm), <constant>)

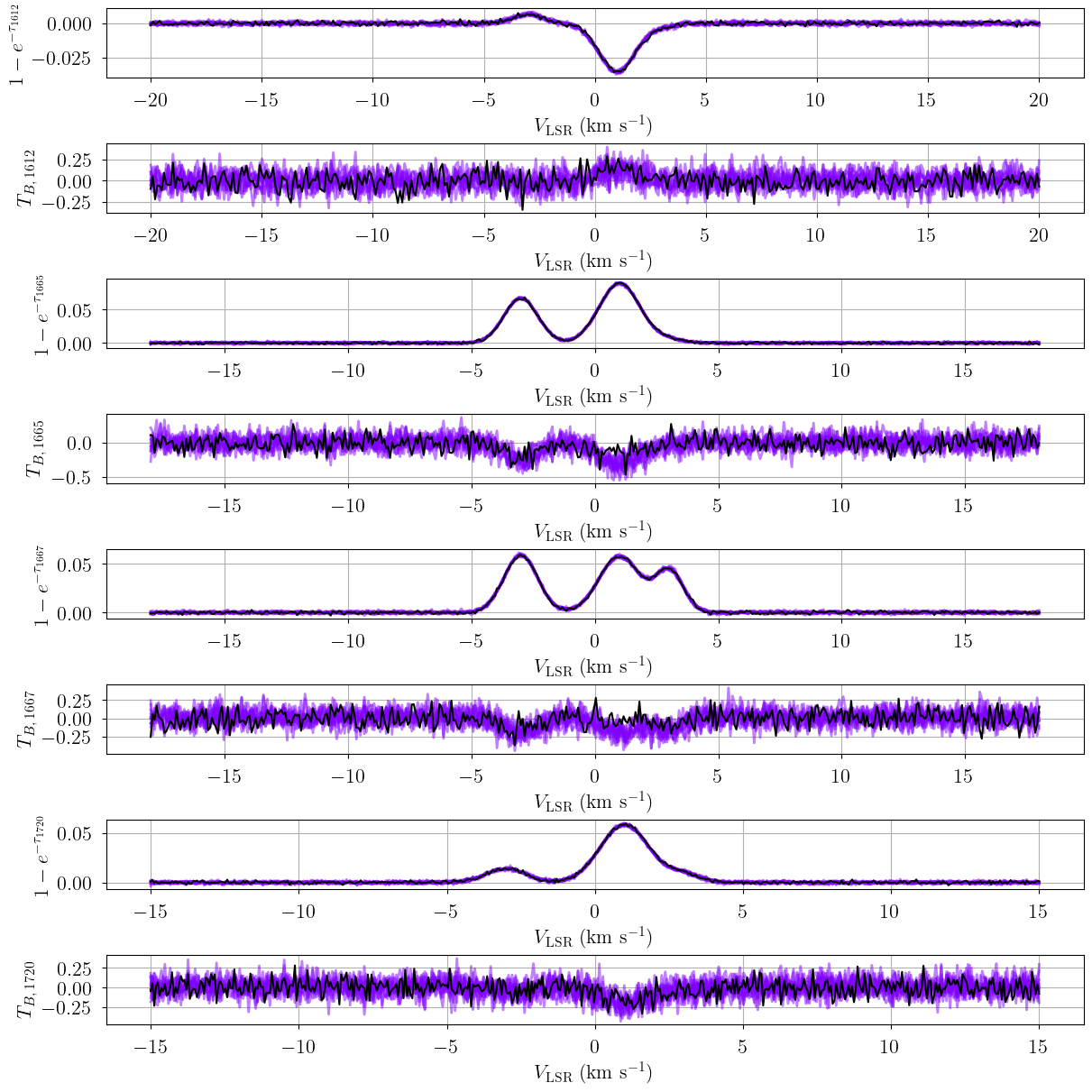

from bayes_spec.plots import plot_predictive

# prior predictive check
prior = model.sample_prior_predictive(
    samples=100,  # prior predictive samples
)
axes = plot_predictive(model.data, prior.prior_predictive)
axes.ravel()[0].figure.set_size_inches(12, 12)

Sampling: [absorption_1612, absorption_1665, absorption_1667, absorption_1720, baseline_absorption_1612_norm, baseline_absorption_1665_norm, baseline_absorption_1667_norm, baseline_absorption_1720_norm, baseline_emission_1612_norm, baseline_emission_1665_norm, baseline_emission_1667_norm, baseline_emission_1720_norm, depth_nth_fwhm_power_norm, emission_1612, emission_1665, emission_1667, emission_1720, log10_N0_norm, log10_Tkin_norm, log10_depth_norm, log10_nth_fwhm_1pc_norm, log_boltz_factor_1612_norm, log_boltz_factor_1665_norm, log_boltz_factor_1667_norm, velocity_norm]

Variational Inference

We can approximate the posterior distribution using variational inference.

import time

start = time.time()
model.fit(
    n = 100_000, # maximum number of VI iterations
    draws = 1_000, # number of posterior samples
    rel_tolerance = 0.01, # VI relative convergence threshold
    abs_tolerance = 0.1, # VI absolute convergence threshold
    learning_rate = 1e-2, # VI learning rate
)
end = time.time()
print(f"Runtime: {(end-start)/60.0:.2f} minutes")

Convergence achieved at 5300
Interrupted at 5,299 [5%]: Average Loss = 5.7397e+05

Runtime: 2.59 minutes

pm.summary(model.trace.posterior)

arviz - WARNING - Shape validation failed: input_shape: (1, 1000), minimum_shape: (chains=2, draws=4)

	mean	sd	hdi_3%	hdi_97%	mcse_mean	mcse_sd	ess_bulk	ess_tail	r_hat
baseline_absorption_1612_norm[0]	0.243	0.008	0.227	0.257	0.000	0.000	1024.0	942.0	NaN
baseline_emission_1612_norm[0]	-0.067	0.052	-0.160	0.034	0.002	0.001	938.0	980.0	NaN
baseline_absorption_1665_norm[0]	-0.417	0.003	-0.422	-0.413	0.000	0.000	890.0	907.0	NaN
baseline_emission_1665_norm[0]	0.276	0.044	0.194	0.360	0.001	0.001	1008.0	956.0	NaN
baseline_absorption_1667_norm[0]	-0.477	0.003	-0.483	-0.471	0.000	0.000	930.0	983.0	NaN
baseline_emission_1667_norm[0]	0.261	0.047	0.175	0.350	0.002	0.001	956.0	917.0	NaN
baseline_absorption_1720_norm[0]	-0.424	0.004	-0.433	-0.418	0.000	0.000	942.0	904.0	NaN
baseline_emission_1720_norm[0]	0.186	0.046	0.101	0.270	0.001	0.001	1092.0	729.0	NaN
log10_N0_norm[0]	-0.842	0.002	-0.845	-0.838	0.000	0.000	922.0	1038.0	NaN
log10_N0_norm[1]	-0.274	0.001	-0.276	-0.272	0.000	0.000	954.0	983.0	NaN
log10_N0_norm[2]	-1.243	0.004	-1.250	-1.236	0.000	0.000	835.0	877.0	NaN
log_boltz_factor_1612_norm[0]	-0.561	0.006	-0.571	-0.551	0.000	0.000	953.0	841.0	NaN
log_boltz_factor_1612_norm[1]	1.531	0.005	1.521	1.540	0.000	0.000	994.0	1026.0	NaN
log_boltz_factor_1612_norm[2]	0.411	0.008	0.396	0.426	0.000	0.000	1014.0	1005.0	NaN
log10_depth_norm[0]	-0.243	0.025	-0.291	-0.199	0.001	0.001	957.0	983.0	NaN
log10_depth_norm[1]	0.691	0.020	0.652	0.726	0.001	0.000	1001.0	881.0	NaN
log10_depth_norm[2]	-1.337	0.053	-1.442	-1.240	0.002	0.001	999.0	841.0	NaN
log10_Tkin_norm[0]	-1.067	0.359	-1.745	-0.436	0.011	0.008	998.0	944.0	NaN
log10_Tkin_norm[1]	0.008	0.054	-0.097	0.107	0.002	0.001	1088.0	825.0	NaN
log10_Tkin_norm[2]	-1.178	0.470	-2.105	-0.342	0.015	0.011	949.0	942.0	NaN
velocity_norm[0]	-0.600	0.001	-0.601	-0.598	0.000	0.000	1022.0	908.0	NaN
velocity_norm[1]	0.199	0.001	0.198	0.201	0.000	0.000	783.0	770.0	NaN
velocity_norm[2]	0.602	0.001	0.600	0.605	0.000	0.000	1043.0	1069.0	NaN
log10_nth_fwhm_1pc_norm	0.194	0.011	0.173	0.214	0.000	0.000	1058.0	941.0	NaN
depth_nth_fwhm_power_norm	-1.034	0.071	-1.170	-0.901	0.002	0.002	1079.0	866.0	NaN
log_boltz_factor_1665_norm[0]	1.085	0.005	1.076	1.093	0.000	0.000	1052.0	909.0	NaN
log_boltz_factor_1665_norm[1]	0.341	0.001	0.339	0.343	0.000	0.000	837.0	873.0	NaN
log_boltz_factor_1665_norm[2]	0.112	0.005	0.102	0.123	0.000	0.000	960.0	920.0	NaN
log_boltz_factor_1667_norm[0]	0.683	0.005	0.673	0.693	0.000	0.000	1119.0	1024.0	NaN
log_boltz_factor_1667_norm[1]	0.914	0.008	0.899	0.930	0.000	0.000	871.0	1023.0	NaN
log_boltz_factor_1667_norm[2]	1.372	0.023	1.328	1.412	0.001	0.001	1017.0	982.0	NaN
log10_N0[0]	12.158	0.002	12.155	12.162	0.000	0.000	922.0	1038.0	NaN
log10_N0[1]	12.726	0.001	12.724	12.728	0.000	0.000	954.0	983.0	NaN
log10_N0[2]	11.757	0.004	11.750	11.764	0.000	0.000	835.0	877.0	NaN
log_boltz_factor_1612[0]	-0.661	0.006	-0.671	-0.651	0.000	0.000	953.0	841.0	NaN
log_boltz_factor_1612[1]	1.431	0.005	1.421	1.440	0.000	0.000	994.0	1026.0	NaN
log_boltz_factor_1612[2]	0.311	0.008	0.296	0.326	0.000	0.000	1014.0	1005.0	NaN
log_boltz_factor_1665[0]	-1.085	0.005	-1.093	-1.076	0.000	0.000	1052.0	909.0	NaN
log_boltz_factor_1665[1]	-0.341	0.001	-0.343	-0.339	0.000	0.000	837.0	873.0	NaN
log_boltz_factor_1665[2]	-0.112	0.005	-0.123	-0.102	0.000	0.000	960.0	920.0	NaN
log_boltz_factor_1667[0]	-0.683	0.005	-0.693	-0.673	0.000	0.000	1119.0	1024.0	NaN
log_boltz_factor_1667[1]	-0.914	0.008	-0.930	-0.899	0.000	0.000	871.0	1023.0	NaN
log_boltz_factor_1667[2]	-1.372	0.023	-1.412	-1.328	0.001	0.001	1017.0	982.0	NaN
log_boltz_factor_1720[0]	-1.106	0.009	-1.124	-1.090	0.000	0.000	947.0	901.0	NaN
log_boltz_factor_1720[1]	-2.686	0.010	-2.702	-2.666	0.000	0.000	863.0	981.0	NaN
log_boltz_factor_1720[2]	-1.795	0.025	-1.840	-1.749	0.001	0.001	1057.0	917.0	NaN
log10_N2[0]	11.687	0.003	11.682	11.692	0.000	0.000	994.0	978.0	NaN
log10_N2[1]	12.578	0.001	12.575	12.580	0.000	0.000	920.0	982.0	NaN
log10_N2[2]	11.709	0.004	11.701	11.717	0.000	0.000	971.0	950.0	NaN
log10_N1[0]	12.196	0.004	12.189	12.203	0.000	0.000	966.0	942.0	NaN
log10_N1[1]	12.178	0.003	12.173	12.183	0.000	0.000	960.0	974.0	NaN
log10_N1[2]	11.796	0.006	11.785	11.806	0.000	0.000	988.0	831.0	NaN
log10_N3[0]	11.900	0.004	11.892	11.908	0.000	0.000	969.0	908.0	NaN
log10_N3[1]	11.781	0.004	11.773	11.789	0.000	0.000	893.0	941.0	NaN
log10_N3[2]	11.200	0.011	11.180	11.222	0.000	0.000	1050.0	944.0	NaN
log10_depth[0]	-0.061	0.006	-0.073	-0.050	0.000	0.000	957.0	983.0	NaN
log10_depth[1]	0.173	0.005	0.163	0.181	0.000	0.000	1001.0	881.0	NaN
log10_depth[2]	-0.334	0.013	-0.360	-0.310	0.000	0.000	999.0	841.0	NaN
log10_Tkin[0]	0.933	0.359	0.255	1.564	0.011	0.008	998.0	944.0	NaN
log10_Tkin[1]	2.008	0.054	1.903	2.107	0.002	0.001	1088.0	825.0	NaN
log10_Tkin[2]	0.822	0.470	-0.105	1.658	0.015	0.011	949.0	942.0	NaN
velocity[0]	-2.998	0.004	-3.007	-2.991	0.000	0.000	1022.0	908.0	NaN
velocity[1]	0.997	0.003	0.992	1.003	0.000	0.000	783.0	770.0	NaN
velocity[2]	3.012	0.007	2.999	3.024	0.000	0.000	1043.0	1069.0	NaN
log10_nth_fwhm_1pc	0.219	0.001	0.217	0.221	0.000	0.000	1058.0	941.0	NaN
depth_nth_fwhm_power	0.297	0.007	0.283	0.310	0.000	0.000	1079.0	866.0	NaN
fwhm_thermal[0]	0.134	0.057	0.044	0.236	0.002	0.001	998.0	944.0	NaN
fwhm_thermal[1]	0.424	0.027	0.375	0.475	0.001	0.001	1088.0	825.0	NaN
fwhm_thermal[2]	0.125	0.070	0.030	0.255	0.002	0.002	949.0	942.0	NaN
fwhm_nonthermal[0]	1.590	0.008	1.574	1.605	0.000	0.000	967.0	902.0	NaN
fwhm_nonthermal[1]	1.865	0.009	1.847	1.882	0.000	0.000	1145.0	805.0	NaN
fwhm_nonthermal[2]	1.319	0.015	1.292	1.347	0.000	0.000	996.0	992.0	NaN
fwhm[0]	1.597	0.010	1.579	1.615	0.000	0.000	943.0	929.0	NaN
fwhm[1]	1.913	0.011	1.894	1.935	0.000	0.000	1168.0	979.0	NaN
fwhm[2]	1.327	0.018	1.293	1.358	0.001	0.000	1096.0	943.0	NaN
Tex_1612[0]	0.117	0.001	0.115	0.119	0.000	0.000	953.0	841.0	NaN
Tex_1612[1]	-0.054	0.000	-0.054	-0.054	0.000	0.000	994.0	1026.0	NaN
Tex_1612[2]	-0.249	0.006	-0.261	-0.237	0.000	0.000	1014.0	1005.0	NaN
Tex_1665[0]	0.074	0.000	0.073	0.074	0.000	0.000	1052.0	909.0	NaN
Tex_1665[1]	0.235	0.001	0.233	0.236	0.000	0.000	837.0	873.0	NaN
Tex_1665[2]	0.717	0.035	0.652	0.781	0.001	0.001	960.0	920.0	NaN
Tex_1667[0]	0.117	0.001	0.116	0.119	0.000	0.000	1119.0	1024.0	NaN
Tex_1667[1]	0.088	0.001	0.086	0.089	0.000	0.000	871.0	1023.0	NaN
Tex_1667[2]	0.058	0.001	0.057	0.060	0.000	0.000	1017.0	982.0	NaN
Tex_1720[0]	0.075	0.001	0.073	0.076	0.000	0.000	947.0	901.0	NaN
Tex_1720[1]	0.031	0.000	0.031	0.031	0.000	0.000	863.0	981.0	NaN
Tex_1720[2]	0.046	0.001	0.045	0.047	0.000	0.000	1057.0	917.0	NaN

posterior = model.sample_posterior_predictive(
    thin=100, # keep one in {thin} posterior samples
)
axes = plot_predictive(model.data, posterior.posterior_predictive)
axes.ravel()[0].figure.set_size_inches(12, 12)

Sampling: [absorption_1612, absorption_1665, absorption_1667, absorption_1720, emission_1612, emission_1665, emission_1667, emission_1720]

Posterior Sampling: MCMC

start = time.time()
model.sample(
    init = "advi+adapt_diag", # initialization strategy
    tune = 1000, # tuning samples
    draws = 1000, # posterior samples
    chains = 4, # number of independent chains
    cores = 4, # number of parallel chains
    init_kwargs = {"rel_tolerance": 0.01, "abs_tolerance": 0.1, "learning_rate": 1e-2}, # VI initialization arguments
    nuts_kwargs = {"target_accept": 0.8}, # NUTS arguments
)
end = time.time()
print(f"Runtime: {(end-start)/60.0:.2f} minutes")

Initializing NUTS using custom advi+adapt_diag strategy

Convergence achieved at 5300
Interrupted at 5,299 [5%]: Average Loss = 5.7397e+05
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [baseline_absorption_1612_norm, baseline_emission_1612_norm, baseline_absorption_1665_norm, baseline_emission_1665_norm, baseline_absorption_1667_norm, baseline_emission_1667_norm, baseline_absorption_1720_norm, baseline_emission_1720_norm, log10_N0_norm, log_boltz_factor_1612_norm, log_boltz_factor_1665_norm, log_boltz_factor_1667_norm, log10_depth_norm, log10_Tkin_norm, velocity_norm, log10_nth_fwhm_1pc_norm, depth_nth_fwhm_power_norm]

Sampling 4 chains for 1_000 tune and 1_000 draw iterations (4_000 + 4_000 draws total) took 3454 seconds.

Adding log-likelihood to trace

There were 64 divergences in converged chains.
Runtime: 59.61 minutes

model.solve(kl_div_threshold=0.1)

GMM converged to unique solution

print("solutions:", model.solutions)
az.summary(model.trace["solution_0"])
# this also works: az.summary(model.trace.solution_0)

solutions: [0]

	mean	sd	hdi_3%	hdi_97%	mcse_mean	mcse_sd	ess_bulk	ess_tail	r_hat
baseline_absorption_1612_norm[0]	0.239	0.008	0.225	0.254	0.000	0.000	4724.0	2710.0	1.0
baseline_emission_1612_norm[0]	-0.073	0.049	-0.166	0.015	0.001	0.001	4825.0	1954.0	1.0
baseline_absorption_1665_norm[0]	-0.420	0.003	-0.425	-0.415	0.000	0.000	5600.0	2835.0	1.0
baseline_emission_1665_norm[0]	0.220	0.044	0.140	0.308	0.001	0.000	5213.0	2763.0	1.0
baseline_absorption_1667_norm[0]	-0.478	0.003	-0.484	-0.472	0.000	0.000	5070.0	3134.0	1.0
baseline_emission_1667_norm[0]	0.154	0.047	0.064	0.240	0.001	0.001	3768.0	2817.0	1.0
baseline_absorption_1720_norm[0]	-0.415	0.004	-0.422	-0.407	0.000	0.000	4718.0	2622.0	1.0
baseline_emission_1720_norm[0]	0.168	0.042	0.090	0.249	0.001	0.000	6455.0	2738.0	1.0
log10_N0_norm[0]	-0.685	0.229	-0.969	-0.233	0.007	0.005	1016.0	1896.0	1.0
log10_N0_norm[1]	0.458	0.039	0.385	0.531	0.001	0.001	1601.0	1316.0	1.0
log10_N0_norm[2]	-1.105	0.195	-1.324	-0.708	0.007	0.005	1033.0	1082.0	1.0
log_boltz_factor_1612_norm[0]	-0.413	0.352	-1.055	0.054	0.011	0.008	1019.0	1964.0	1.0
log_boltz_factor_1612_norm[1]	0.213	0.012	0.193	0.235	0.000	0.000	1606.0	1341.0	1.0
log_boltz_factor_1612_norm[2]	0.337	0.092	0.157	0.478	0.003	0.002	1139.0	1138.0	1.0
log10_depth_norm[0]	-0.025	0.663	-1.237	1.285	0.015	0.012	2020.0	1318.0	1.0
log10_depth_norm[1]	0.541	0.767	-1.040	1.894	0.017	0.012	2130.0	1413.0	1.0
log10_depth_norm[2]	-0.784	0.632	-1.990	0.378	0.012	0.009	2555.0	1513.0	1.0
log10_Tkin_norm[0]	-0.233	0.790	-1.611	1.018	0.013	0.012	3415.0	2337.0	1.0
log10_Tkin_norm[1]	0.118	0.855	-1.406	1.247	0.017	0.014	1929.0	1293.0	1.0
log10_Tkin_norm[2]	-0.463	0.716	-1.839	0.681	0.011	0.010	4610.0	2791.0	1.0
velocity_norm[0]	-0.600	0.001	-0.601	-0.599	0.000	0.000	4901.0	2582.0	1.0
velocity_norm[1]	0.201	0.001	0.200	0.202	0.000	0.000	4945.0	2972.0	1.0
velocity_norm[2]	0.603	0.001	0.600	0.605	0.000	0.000	4768.0	3076.0	1.0
log10_nth_fwhm_1pc_norm	-0.266	0.550	-1.373	0.701	0.012	0.009	2303.0	2287.0	1.0
depth_nth_fwhm_power_norm	-0.120	0.929	-1.987	1.475	0.014	0.017	4700.0	2549.0	1.0
log_boltz_factor_1665_norm[0]	0.843	0.504	0.096	1.720	0.016	0.011	1017.0	1964.0	1.0
log_boltz_factor_1665_norm[1]	0.056	0.005	0.046	0.065	0.000	0.000	1602.0	1305.0	1.0
log_boltz_factor_1665_norm[2]	0.087	0.030	0.027	0.133	0.001	0.001	1046.0	1098.0	1.0
log_boltz_factor_1667_norm[0]	0.533	0.370	0.047	1.211	0.012	0.008	1012.0	1974.0	1.0
log_boltz_factor_1667_norm[1]	0.023	0.003	0.018	0.028	0.000	0.000	1604.0	1371.0	1.0
log_boltz_factor_1667_norm[2]	0.965	0.620	0.047	2.014	0.017	0.012	1074.0	1089.0	1.0
log10_N0[0]	12.315	0.229	12.031	12.767	0.007	0.005	1016.0	1896.0	1.0
log10_N0[1]	13.458	0.039	13.385	13.531	0.001	0.001	1601.0	1316.0	1.0
log10_N0[2]	11.895	0.195	11.676	12.292	0.007	0.005	1033.0	1082.0	1.0
log_boltz_factor_1612[0]	-0.513	0.352	-1.155	-0.046	0.011	0.008	1019.0	1964.0	1.0
log_boltz_factor_1612[1]	0.113	0.012	0.093	0.135	0.000	0.000	1606.0	1341.0	1.0
log_boltz_factor_1612[2]	0.237	0.092	0.057	0.378	0.003	0.002	1139.0	1138.0	1.0
log_boltz_factor_1665[0]	-0.843	0.504	-1.720	-0.096	0.016	0.011	1017.0	1964.0	1.0
log_boltz_factor_1665[1]	-0.056	0.005	-0.065	-0.046	0.000	0.000	1602.0	1305.0	1.0
log_boltz_factor_1665[2]	-0.087	0.030	-0.133	-0.027	0.001	0.001	1046.0	1098.0	1.0
log_boltz_factor_1667[0]	-0.533	0.370	-1.211	-0.047	0.012	0.008	1012.0	1974.0	1.0
log_boltz_factor_1667[1]	-0.023	0.003	-0.028	-0.018	0.000	0.000	1604.0	1371.0	1.0
log_boltz_factor_1667[2]	-0.965	0.620	-2.014	-0.047	0.017	0.012	1074.0	1089.0	1.0
log_boltz_factor_1720[0]	-0.862	0.523	-1.777	-0.095	0.016	0.012	1011.0	1925.0	1.0
log_boltz_factor_1720[1]	-0.192	0.020	-0.228	-0.157	0.001	0.000	1602.0	1329.0	1.0
log_boltz_factor_1720[2]	-1.289	0.732	-2.513	-0.103	0.020	0.014	1078.0	1095.0	1.0
log10_N2[0]	11.949	0.436	11.229	12.770	0.014	0.010	1017.0	1943.0	1.0
log10_N2[1]	13.433	0.042	13.356	13.511	0.001	0.001	1601.0	1316.0	1.0
log10_N2[2]	11.857	0.207	11.616	12.277	0.007	0.005	1037.0	1082.0	1.0
log10_N1[0]	12.394	0.294	11.980	12.950	0.009	0.007	1013.0	1944.0	1.0
log10_N1[1]	13.606	0.047	13.519	13.692	0.001	0.001	1602.0	1329.0	1.0
log10_N1[2]	11.976	0.244	11.686	12.472	0.009	0.006	1074.0	1082.0	1.0
log10_N3[0]	12.162	0.443	11.408	12.978	0.014	0.010	1012.0	1924.0	1.0
log10_N3[1]	13.596	0.048	13.509	13.687	0.001	0.001	1602.0	1320.0	1.0
log10_N3[2]	11.557	0.490	10.703	12.535	0.015	0.011	1073.0	1082.0	1.0
log10_depth[0]	-0.006	0.166	-0.309	0.321	0.004	0.003	2020.0	1318.0	1.0
log10_depth[1]	0.135	0.192	-0.260	0.473	0.004	0.003	2130.0	1413.0	1.0
log10_depth[2]	-0.196	0.158	-0.497	0.095	0.003	0.002	2555.0	1513.0	1.0
log10_Tkin[0]	1.767	0.790	0.389	3.018	0.013	0.010	3415.0	2337.0	1.0
log10_Tkin[1]	2.118	0.855	0.594	3.247	0.017	0.013	1929.0	1293.0	1.0
log10_Tkin[2]	1.537	0.716	0.161	2.681	0.011	0.008	4610.0	2791.0	1.0
velocity[0]	-3.000	0.003	-3.005	-2.995	0.000	0.000	4901.0	2582.0	1.0
velocity[1]	1.005	0.003	1.000	1.009	0.000	0.000	4945.0	2972.0	1.0
velocity[2]	3.013	0.006	3.001	3.023	0.000	0.000	4768.0	3076.0	1.0
log10_nth_fwhm_1pc	0.173	0.055	0.063	0.270	0.001	0.001	2303.0	2287.0	1.0
depth_nth_fwhm_power	0.388	0.093	0.201	0.548	0.001	0.001	4700.0	2549.0	1.0
fwhm_thermal[0]	0.450	0.331	0.011	1.061	0.006	0.005	3415.0	2337.0	1.0
fwhm_thermal[1]	0.691	0.483	0.017	1.504	0.011	0.009	1929.0	1293.0	1.0
fwhm_thermal[2]	0.327	0.227	0.012	0.752	0.003	0.003	4610.0	2791.0	1.0
fwhm_nonthermal[0]	1.488	0.150	1.189	1.608	0.003	0.002	3131.0	2309.0	1.0
fwhm_nonthermal[1]	1.698	0.257	1.188	1.926	0.007	0.005	1825.0	1269.0	1.0
fwhm_nonthermal[2]	1.264	0.090	1.089	1.358	0.002	0.001	4196.0	2736.0	1.0
fwhm[0]	1.596	0.006	1.584	1.609	0.000	0.000	3909.0	3365.0	1.0
fwhm[1]	1.913	0.006	1.902	1.925	0.000	0.000	3669.0	3746.0	1.0
fwhm[2]	1.328	0.013	1.302	1.352	0.000	0.000	3723.0	3179.0	1.0
Tex_1612[0]	0.289	0.284	0.045	0.871	0.008	0.006	1019.0	1964.0	1.0
Tex_1612[1]	-0.691	0.069	-0.811	-0.553	0.002	0.001	1606.0	1341.0	1.0
Tex_1612[2]	-0.434	0.361	-1.026	-0.181	0.012	0.009	1139.0	1138.0	1.0
Tex_1665[0]	0.159	0.141	0.033	0.444	0.004	0.003	1017.0	1964.0	1.0
Tex_1665[1]	1.450	0.133	1.191	1.686	0.003	0.002	1602.0	1305.0	1.0
Tex_1665[2]	1.153	0.843	0.541	2.539	0.029	0.020	1046.0	1098.0	1.0
Tex_1667[0]	0.291	0.287	0.042	0.875	0.008	0.006	1012.0	1974.0	1.0
Tex_1667[1]	3.541	0.377	2.793	4.199	0.009	0.007	1604.0	1371.0	1.0
Tex_1667[2]	0.155	0.184	0.023	0.466	0.006	0.004	1074.0	1089.0	1.0
Tex_1720[0]	0.162	0.144	0.035	0.456	0.004	0.003	1011.0	1925.0	1.0
Tex_1720[1]	0.435	0.043	0.354	0.513	0.001	0.001	1602.0	1329.0	1.0
Tex_1720[2]	0.106	0.113	0.021	0.297	0.004	0.003	1078.0	1095.0	1.0

posterior = model.sample_posterior_predictive(
    thin=100, # keep one in {thin} posterior samples
)
axes = plot_predictive(model.data, posterior.posterior_predictive)
axes.ravel()[0].figure.set_size_inches(12, 12)

Sampling: [absorption_1612, absorption_1665, absorption_1667, absorption_1720, emission_1612, emission_1665, emission_1667, emission_1720]

from bayes_spec.plots import plot_traces

axes = plot_traces(model.trace.solution_0, model.cloud_freeRVs + model.baseline_freeRVs + model.hyper_freeRVs)
axes.ravel()[0].figure.set_size_inches(20, 20)
axes.ravel()[0].figure.tight_layout()

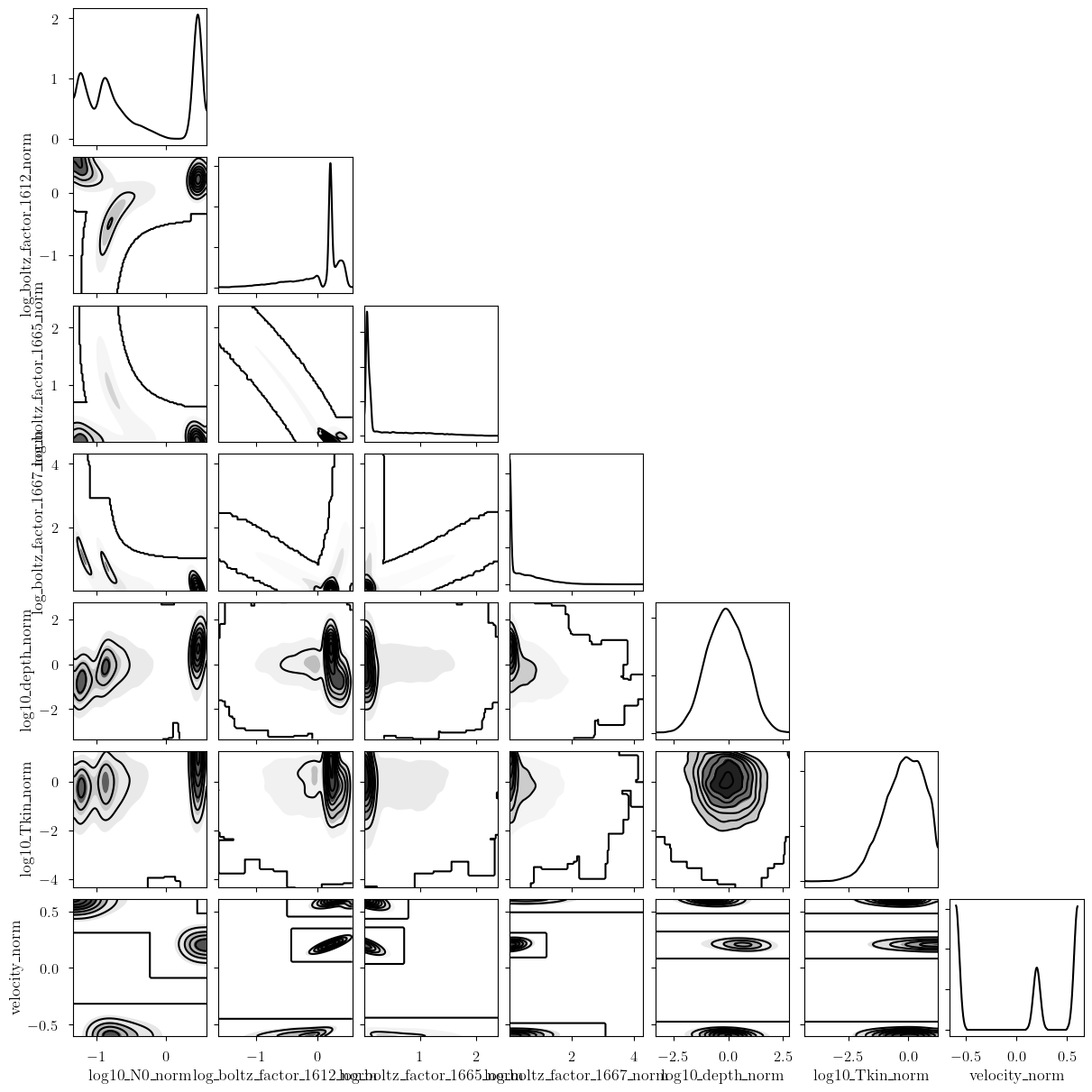

from bayes_spec.plots import plot_pair

axes = plot_pair(
    model.trace.solution_0, # samples
    model.cloud_freeRVs, # var_names to plot
    labeller=model.labeller, # label manager
)
axes.ravel()[0].figure.set_size_inches(12, 12)

axes = plot_pair(
    model.trace.solution_0.sel(cloud=0), # samples
    model.cloud_deterministics, # var_names to plot
    labeller=model.labeller, # label manager
)
axes.ravel()[0].figure.set_size_inches(20, 20)

point_stats = az.summary(model.trace.solution_0, kind='stats', hdi_prob=0.68)
print("BIC:", model.bic())
point_stats

BIC: -22711.57844783173

	mean	sd	hdi_16%	hdi_84%
baseline_absorption_1612_norm[0]	0.239	0.008	0.232	0.247
baseline_emission_1612_norm[0]	-0.073	0.049	-0.123	-0.028
baseline_absorption_1665_norm[0]	-0.420	0.003	-0.423	-0.418
baseline_emission_1665_norm[0]	0.220	0.044	0.177	0.265
baseline_absorption_1667_norm[0]	-0.478	0.003	-0.481	-0.475
baseline_emission_1667_norm[0]	0.154	0.047	0.109	0.201
baseline_absorption_1720_norm[0]	-0.415	0.004	-0.419	-0.411
baseline_emission_1720_norm[0]	0.168	0.042	0.124	0.207
log10_N0_norm[0]	-0.685	0.229	-0.966	-0.621
log10_N0_norm[1]	0.458	0.039	0.431	0.506
log10_N0_norm[2]	-1.105	0.195	-1.303	-1.068
log_boltz_factor_1612_norm[0]	-0.413	0.352	-0.560	0.045
log_boltz_factor_1612_norm[1]	0.213	0.012	0.199	0.220
log_boltz_factor_1612_norm[2]	0.337	0.092	0.277	0.467
log10_depth_norm[0]	-0.025	0.663	-0.584	0.652
log10_depth_norm[1]	0.541	0.767	-0.012	1.368
log10_depth_norm[2]	-0.784	0.632	-1.390	-0.184
log10_Tkin_norm[0]	-0.233	0.790	-0.728	0.802
log10_Tkin_norm[1]	0.118	0.855	-0.214	1.212
log10_Tkin_norm[2]	-0.463	0.716	-0.958	0.405
velocity_norm[0]	-0.600	0.001	-0.601	-0.599
velocity_norm[1]	0.201	0.001	0.200	0.201
velocity_norm[2]	0.603	0.001	0.601	0.604
log10_nth_fwhm_1pc_norm	-0.266	0.550	-0.716	0.326
depth_nth_fwhm_power_norm	-0.120	0.929	-1.027	0.811
log_boltz_factor_1665_norm[0]	0.843	0.504	0.122	1.095
log_boltz_factor_1665_norm[1]	0.056	0.005	0.050	0.059
log_boltz_factor_1665_norm[2]	0.087	0.030	0.068	0.126
log_boltz_factor_1667_norm[0]	0.533	0.370	0.060	0.684
log_boltz_factor_1667_norm[1]	0.023	0.003	0.020	0.024
log_boltz_factor_1667_norm[2]	0.965	0.620	0.097	1.225
log10_N0[0]	12.315	0.229	12.034	12.379
log10_N0[1]	13.458	0.039	13.431	13.506
log10_N0[2]	11.895	0.195	11.697	11.932
log_boltz_factor_1612[0]	-0.513	0.352	-0.660	-0.055
log_boltz_factor_1612[1]	0.113	0.012	0.099	0.120
log_boltz_factor_1612[2]	0.237	0.092	0.177	0.367
log_boltz_factor_1665[0]	-0.843	0.504	-1.095	-0.122
log_boltz_factor_1665[1]	-0.056	0.005	-0.059	-0.050
log_boltz_factor_1665[2]	-0.087	0.030	-0.126	-0.068
log_boltz_factor_1667[0]	-0.533	0.370	-0.684	-0.060
log_boltz_factor_1667[1]	-0.023	0.003	-0.024	-0.020
log_boltz_factor_1667[2]	-0.965	0.620	-1.225	-0.097
log_boltz_factor_1720[0]	-0.862	0.523	-1.124	-0.130
log_boltz_factor_1720[1]	-0.192	0.020	-0.204	-0.168
log_boltz_factor_1720[2]	-1.289	0.732	-1.776	-0.335
log10_N2[0]	11.949	0.436	11.391	12.314
log10_N2[1]	13.433	0.042	13.406	13.485
log10_N2[2]	11.857	0.207	11.638	11.898
log10_N1[0]	12.394	0.294	12.000	12.511
log10_N1[1]	13.606	0.047	13.575	13.664
log10_N1[2]	11.976	0.244	11.706	12.043
log10_N3[0]	12.162	0.443	11.600	12.539
log10_N3[1]	13.596	0.048	13.564	13.655
log10_N3[2]	11.557	0.490	10.986	11.957
log10_depth[0]	-0.006	0.166	-0.146	0.163
log10_depth[1]	0.135	0.192	-0.003	0.342
log10_depth[2]	-0.196	0.158	-0.347	-0.046
log10_Tkin[0]	1.767	0.790	1.272	2.802
log10_Tkin[1]	2.118	0.855	1.786	3.212
log10_Tkin[2]	1.537	0.716	1.042	2.405
velocity[0]	-3.000	0.003	-3.003	-2.997
velocity[1]	1.005	0.003	1.002	1.007
velocity[2]	3.013	0.006	3.007	3.019
log10_nth_fwhm_1pc	0.173	0.055	0.128	0.233
depth_nth_fwhm_power	0.388	0.093	0.297	0.481
fwhm_thermal[0]	0.450	0.331	0.023	0.575
fwhm_thermal[1]	0.691	0.483	0.017	0.960
fwhm_thermal[2]	0.327	0.227	0.032	0.407
fwhm_nonthermal[0]	1.488	0.150	1.487	1.606
fwhm_nonthermal[1]	1.698	0.257	1.656	1.923
fwhm_nonthermal[2]	1.264	0.090	1.259	1.341
fwhm[0]	1.596	0.006	1.590	1.603
fwhm[1]	1.913	0.006	1.907	1.919
fwhm[2]	1.328	0.013	1.315	1.341
Tex_1612[0]	0.289	0.284	0.051	0.284
Tex_1612[1]	-0.691	0.069	-0.765	-0.628
Tex_1612[2]	-0.434	0.361	-0.401	-0.194
Tex_1665[0]	0.159	0.141	0.038	0.157
Tex_1665[1]	1.450	0.133	1.349	1.611
Tex_1665[2]	1.153	0.843	0.595	1.091
Tex_1667[0]	0.291	0.287	0.051	0.286
Tex_1667[1]	3.541	0.377	3.185	3.932
Tex_1667[2]	0.155	0.184	0.029	0.142
Tex_1720[0]	0.162	0.144	0.037	0.160
Tex_1720[1]	0.435	0.043	0.403	0.488
Tex_1720[2]	0.106	0.113	0.024	0.098
